Plastic Compression Fittings for Tubing: Types, Benefits, and Applications

Plastic compression fittings for tubing are widely used in plumbing, water distribution, irrigation, and industrial fluid handling systems. We offer a practical method for connecting plastic pipes and tubes without the need for welding or specialized joining equipment. When the appropriate fitting is selected, it ensures a robust connection while also simplifying installation and maintenance. Established in 1976, Portage Specialty operates as a manufacturer and distributor, serving industrial and commercial clients. Understanding the various types of plastic compression fittings, their applications, and their compatibility requirements can help buyers select the right products for their projects.

What Are Plastic Compression Fittings for Tubing?

Plastic compression fittings for tubing are mechanical connectors designed to join plastic tubes or pipes. A typical fitting consists of a body, a compression nut, and a compression ring (or ferrule). When the nut is tightened, the ring is compressed around the tubing, creating a strong and secure connection. These fittings are available in various sizes, materials, and configurations to meet diverse requirements related to plumbing and fluid transfer. Depending on their design, they can be used for potable water systems, irrigation networks, drainage systems, and other suitable installations. Before purchasing, it is essential to ensure that the fitting is designed for the specific pipe material, outside diameter, operating pressure and temperature for which it is intended to be used.

Benefits of Plastic Compression Joints

Plastic compression joints offer several practical advantages for residential, commercial, and industrial installations.

1. Easy Installation

Many plastic compression fittings can be installed using standard hand tools. They generally do not require heat welding or adhesives, making them highly convenient for repair and installation tasks.

2. Corrosion Resistance

Plastic materials do not rust like conventional steel. Depending on the polymer used, these fittings can offer good resistance against moisture and certain chemicals. Before use, one should always verify whether the materials are compatible with each other.

3. Lightweight Construction

Plastic fittings are lightweight and easy to handle. This can simplify transportation, storage, and installation, particularly in large irrigation or water distribution projects.

4. Maintenance Convenience

Many compression fitting designs can be disassembled for inspection, maintenance, or replacement. Whether or not they can be reused depends on the product’s design and the condition of its sealing components.

5. Versatile Applications

Plastic compression fittings are available in various configurations, allowing users to connect compatible tubing, join sections of pipe, change the direction of connections, and adapt between certain pipe sizes.

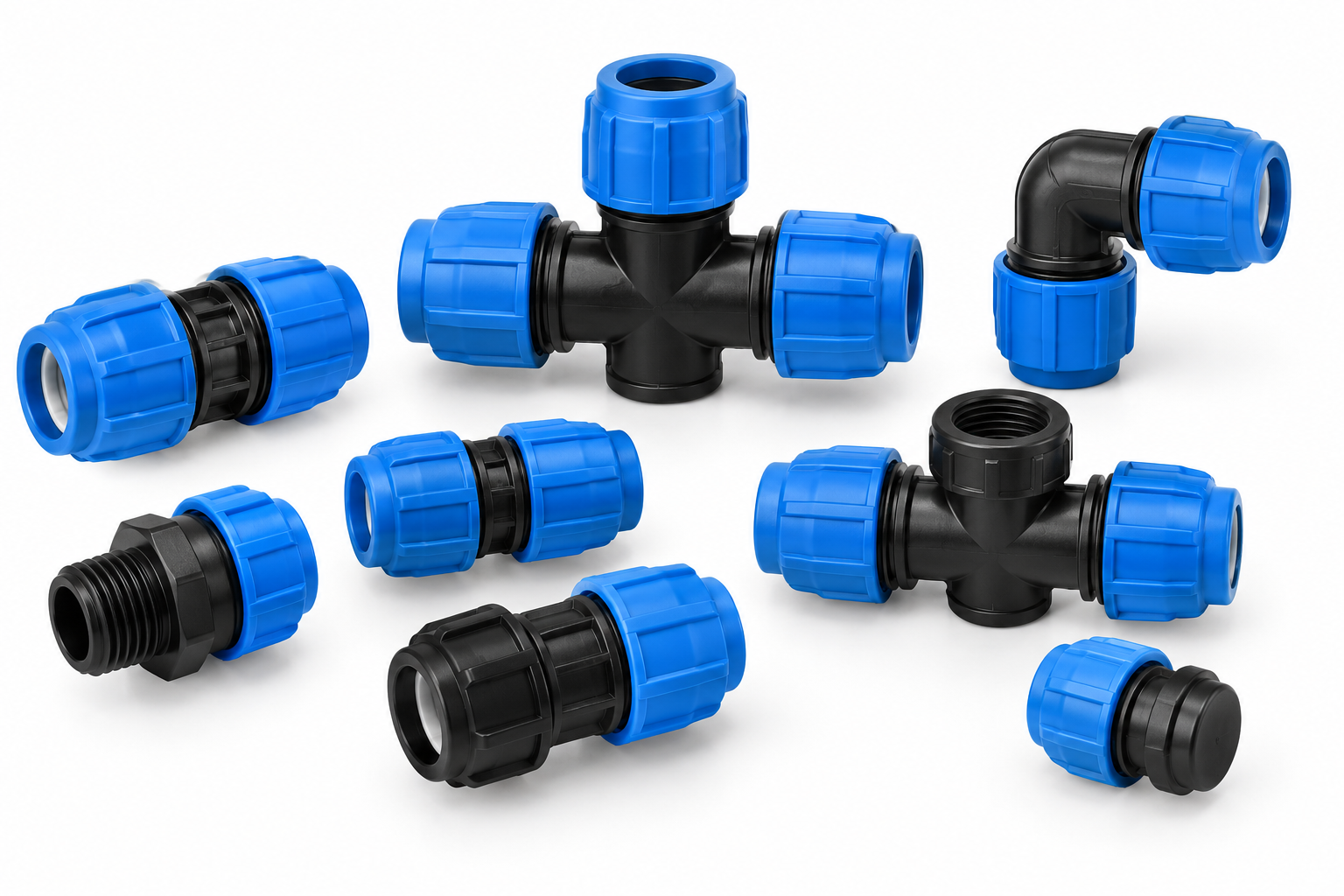

Types of Compression Fitting Plastic Tubing Connections

Choosing the correct compression fitting plastic tubing connection depends on the layout and requirements of the system. Common types include:

• Straight couplings: Join two compatible pipe or tubing sections in a straight line.
• Elbow fittings: Change the direction of a tubing run, commonly at a 90-degree angle.
• Tee fittings: Create a branch connection for distributing water or other compatible fluids.
• Reducers: Connect compatible pipes with different outside diameters.
• Male and female threaded adapters: Connect plastic tubing to compatible threaded equipment or plumbing components.
• End caps and plugs: Close suitable pipe ends when the system design permits.

Every fitting must correspond to the dimensions of the tubing and the specifications of the connection. Using a fitting that does not match can lead to leakage, improper sealing, or failure of the connection.

Compression Coupling to Plastic Tubing: How Does It Work?

A compression coupling for plastic tubing joins two compatible tube or pipe sections together. During installation, the tubing is cut perfectly straight (square) and prepared according to the manufacturer’s instructions. The pipe is inserted into the fitting, and the compression nut is tightened to a specified degree. The internal compression ring grips the tubing, while the fitting’s sealing mechanism helps prevent fluid from leaking out. For a reliable connection, it is essential to insert the tube to the correct depth and tighten it properly. Avoid overtightening, as applying excessive force can damage the plastic tubing or fitting components. For pressurized systems, follow the manufacturer’s installation instructions and pressure ratings.

Applications of Compression Fittings for Plastic Pipe

Compression fittings for plastic pipes are used in various sectors where suitable plastic piping systems have been installed. Plumbing and water distribution: Plastic pipes used in water supply and distribution systems are connected using appropriate fittings. Agricultural irrigation: These fittings can be used to connect the appropriate irrigation pipes and tubing employed in gardens, fields and landscaping projects. Industrial fluid handling: Specific fittings are used to connect plastic tubing within equipment and systems that handle various fluids. Commercial buildings: Plastic compression fittings can be used in appropriate plumbing, water management and maintenance tasks. Gardening and landscaping: Small-diameter fittings can help connect tubing used in watering systems and irrigation networks. Not every plastic fitting is suitable for every type of application. Systems intended for drinking water may require certified materials, while systems designed to handle chemicals must be verified for chemical compatibility.

How to Choose the Right Plastic Compression Fittings?

Before ordering plastic compression fittings, consider these important factors:

• Pipe material: Confirm compatibility with specific plastics, such as polyethylene (PE), or any other supported material.
• Pipe dimensions: Check the outer diameter and the required fitting size.
• Pressure rating: Ensure that the fitting and pipe assembly can withstand the operating pressure.
• Temperature range: Check for suitability regarding the intended fluid and the ambient temperature.
• Fluid compatibility: Check for resistance to the liquid or chemical passing through the system.
• Connection type: Select the correct coupling, elbow, tee, reducer or threaded adapter.

For reliable performance, purchase products that meet the technical requirements of your installation and follow the manufacturer’s instructions (specifications).

Contact Portage Specialty

Portage Specialty was established in 1976 and operates as a manufacturer and distributor. Customers looking for compression fittings and related connection products can contact the company to discuss their requirements and find suitable options. Whether you need plastic compression fittings for tubing, plastic compression joints, or compression fittings for plastic pipes, verifying the correct size, material, and application environment is an essential step toward achieving a reliable connection. Contact Portage Specialty for inquiries regarding your fitting needs and products.
